CNC G-Code Text Engraving
3110992794107Creates G Code in real time for the milling of text by CNC Routers.
The program uses any True Type font and ANY language copied and pasted into it, whereby ANY language means for example Russian, Thai, Vietnamese, Tamil, Urdu, Korean, Japanese, Chinese and so on, seriously ANY.
It makes absolutely no difference what language the text is from.
G-Code Text Engrave uses text from any language
#https://olympia-art.com/cnc-g-code-generator/pictures/international.jpg

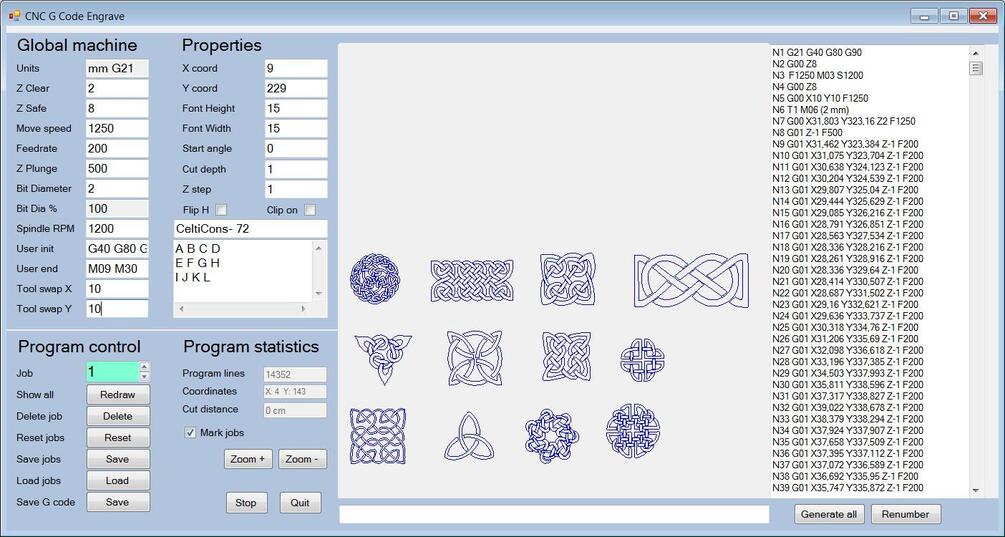

Any True Type font can be used, this includes all the graphical fonts available
Here is a sample http://www.fonts2u.com/category.html?id=25id=25
Here is a video demonstrating the capabilities of the software.There is no audio
G-Code Text Engraving Specs:-
Just 188 Kb

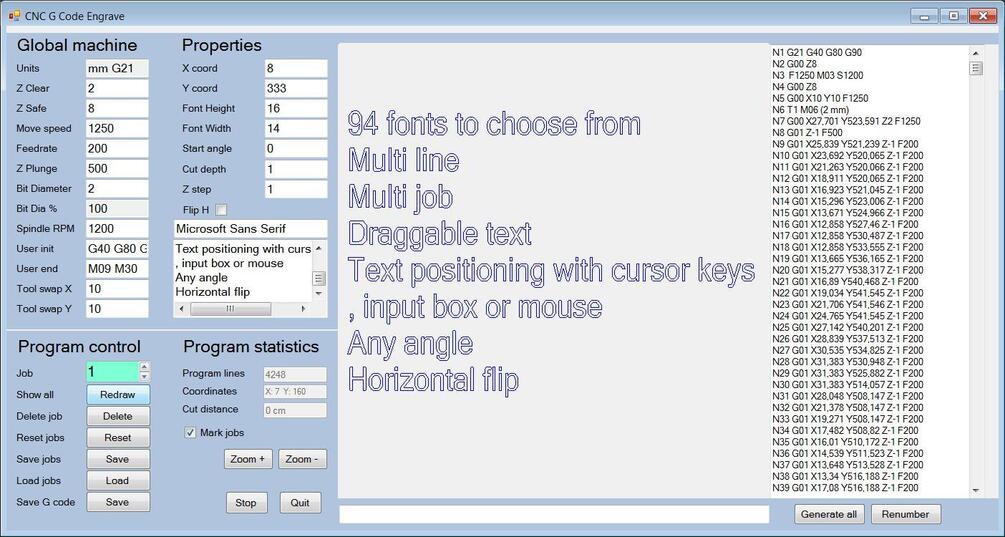

G Code is compiled in real time every time one of the input boxes is changed or an object is dragged by the mouse resulting in a real “What you see is what you get” development environment.
The angle of the text can be at anywhere from 0 to 360 degrees. I know 360 and 0 are the same but 359 looks weird..
The text can be flipped (mirrored) horizontally.
The height and width of the text can be adjusted at a resolution of 1 mm, i.e not limited to standard font sizes.

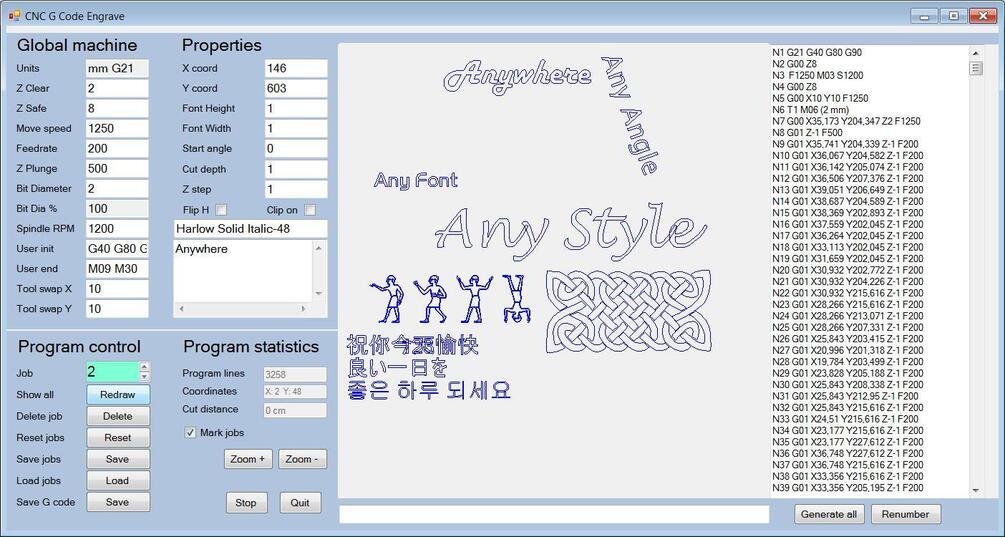

G-Code Text Engraving any angle anywhere
The text can be multi line, just type away in the input box and hit enter to start a new line, or simply paste whatever you want into the box from ANY source.
No annoying “Run, Compile, Generate, Build, Save, Merge” or who knows what else cycle.
Graphics reflect changes in real time.
Jobs can be moved exactly with cursor keys, input boxes, or dragged with the mouse pixel by pixel
G Code is copied to the computer clipboard and can be pasted into a simulator or milling machine directly.
G-Code Text Engraving CNC simulator
No annoying dialog boxes to click away, all messages displayed in a text box.
Each job has its own properties, independent of the other jobs.
1000 + different jobs.
mm and inch scaling.
Things to know:-
Here is some sample G Code in metric, and below that in inch. Please try this on your machine as an air cut before buying.
Note that Z down is MINUS in this code and that the origin 0,0 is bottom left of screen.
N1 G21 G40 G80 G90
N2 G00 Z15
N3 F500 M03 S1200
N4 G00 Z15
N5 G00 X100 Y100 F500
N6 T1 M06 (2 mm)
N7 G00 X80 Y129 Z0 F500
N8 F800
N9 G01 Z-0,3 F200
N10 G02 X80 Y129 I0.0 J-49
N11 G00 Z5
N12 G00 Z15
N13 M09 M30
N14 (###### End job 1 ######)
and here in inch
N1 G20 G40 G80 G90
N2 G00 Z1
N3 F10 M03 S1200
N4 G00 Z1
N5 G00 X20 Y20 F10
N6 T1 M06 (0,1 Inch)
N7 G00 X2 Y2,95 Z0 F10
N8 F18
N9 G01 Z-0,3 F10
N10 G02 X2 Y2,95 I0.0 J-0,95
N11 G00 Z0,5
N12 G00 X2 Y2,85 Z0 F10
N13 F18
N14 G01 Z-0,3 F10
N15 G02 X2 Y2,85 I0.0 J-0,85
N16 G00 Z0,5
N17 G00 Z1
N18 M09 M30
N19 (###### End job 1 ######)
The program runs in:-
Windows XP, 7, 8, 10 (XP and Win 7 users may need to install the Dotnet framework 4.0)
Both versions are 32 bit for maximum compatibility.
After purchase, the program will be available immediately for download.
